Thick plate welding machine
Classification:
Laser Welding
Classification:
Plate thickness 0.5mm-12mm
8mm wide weld seam welding

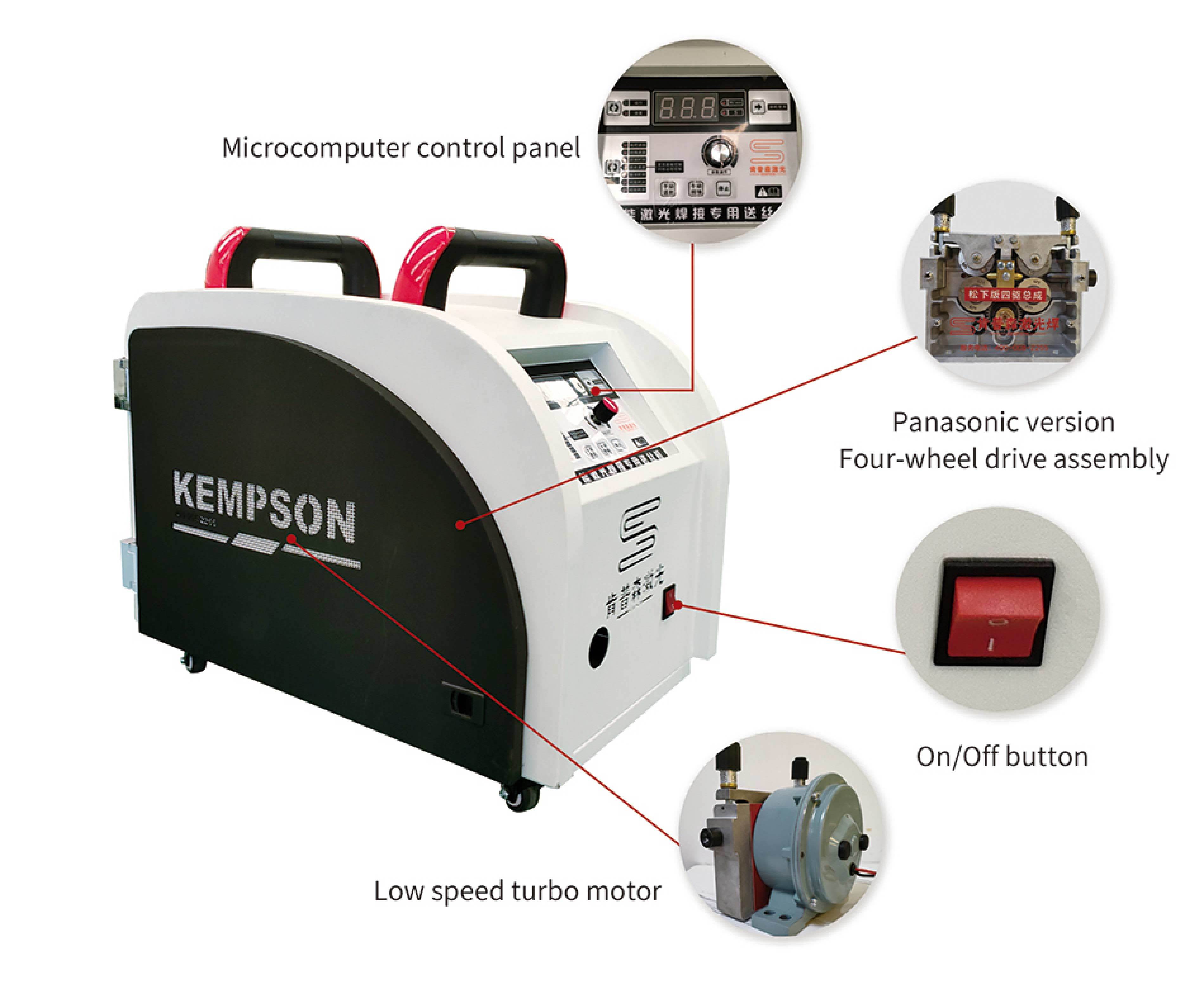

Single/double/triple wire feed free switch
Replace MIG/TIG welding
Reduce time by 50%-70%
Fiber length 10 meters
whatsapp：8613323803856
Product Details
Kempson handheld laser welding machine can weld copper, iron, aluminum, stainless steel and other metals.This welding machine is eye-friendly and has a fast welding speed. Even people without welding skills can weld easily. It is faster and more effective than traditional welding machines, and is suitable for industrial and household use.
Product Model：
|
MODEL |
KPS-II-GSC1500 |
KPS-II-GSC2000 |
KPS-II-GSC3000 |
|
laser power |
1500W |
2000W |
3000W |
|
Melting depth (stainless steel,1m/min) |
2.83mm |
5.03mm |
5.89mm |
|
Melting depth(carbon steel,1m/min) |
3mm |
5.5mm |
6.5mm |
|
Melting depth (aluminum alloy,1m/min) |
2.71mm |
4.61mm |
5.35mm |
|
Automatic threading |
φ0.8-1.6 |
φ 0.8-2.0 |
φ 0.8-2.0 |
|
Power consumption of the entire machine |
≤2.5kw |
≤3kw |
≤3.5kw |
|
Cooling method |
Watercooling |
Water cooling |
Water cooling |
|
Electricitydemand |
220v |
220v |
220v |
|
Equipment size |
0.7*1.1*1.3m |
0.7*1.1*1.3m |
0.7*1.1*1.3m |
|
Equipment weight |
≈220kg |
≈235kg |
≈250kg |
|
*The handheld welding head comes standard with a10 meter fiber optic cable, |
|||
Product introduction：

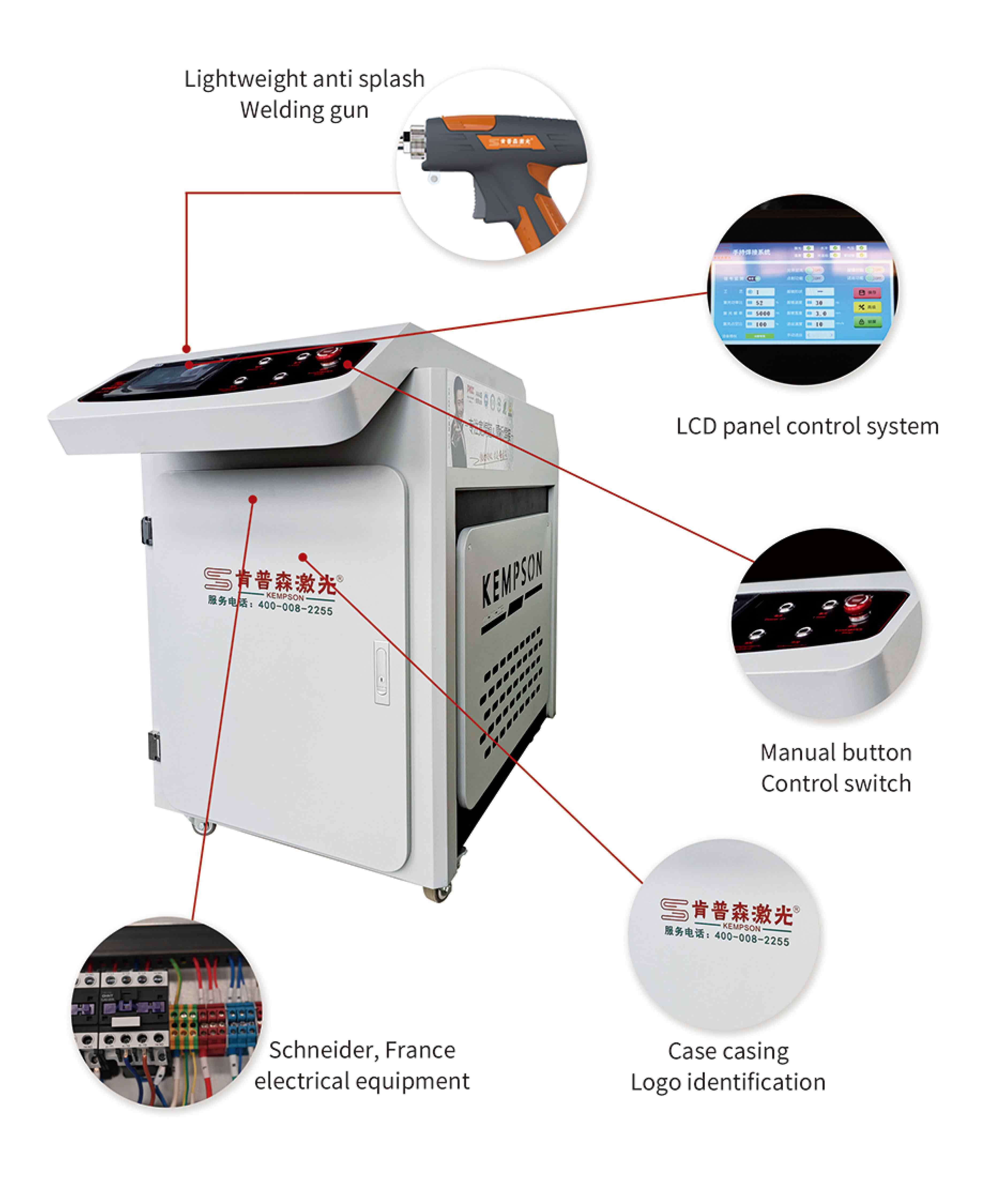

Kempson wide pass handheld laser welding machine,suitable for welding various types of plates.Paired with various welding processes,achieving welding at any angle.The machine is equipped with a customized American chip laser from KEMP- SON,with screen self-test function and high-definition touch screen.The welding pa- rameters can be stored and the welding system can be upgraded.It also uses a mili- tary customized heat dissipation and cooling system,a thickened sheet metal chassis, hollow heat dissipation ducts,and can work 24/7 in high temperature conditions.It uses a Schneider electric control system from France,equipped with a 10 meter fiber optic cable and universal wheels,which is easy to move and supports long-distance welding.Its performance is stable,safe and reliable.
Application scenarios：
Widely used in kitchen and bathroom industry. home appliances industry. advertising industry. mold industry. stainless steedoorsand windows industry, crafts industry, home supplies industry, furniture industry, auto parts industry and other industries.
Agricultural machinery Brewing equipment Filter equipment Sheet metal industry
Welding Sample Display：
It mainly apply to stainless steel, carbon steel, alloy steel, silicon steel,spring steel, aluminurm, aluminurm allty. galvanized plalte, aluminum galvanized plate and other metal welding.
