Handheld air laser welder 1000w-4000w
Classification:
Product Introduction
Product Details
Product introduction：

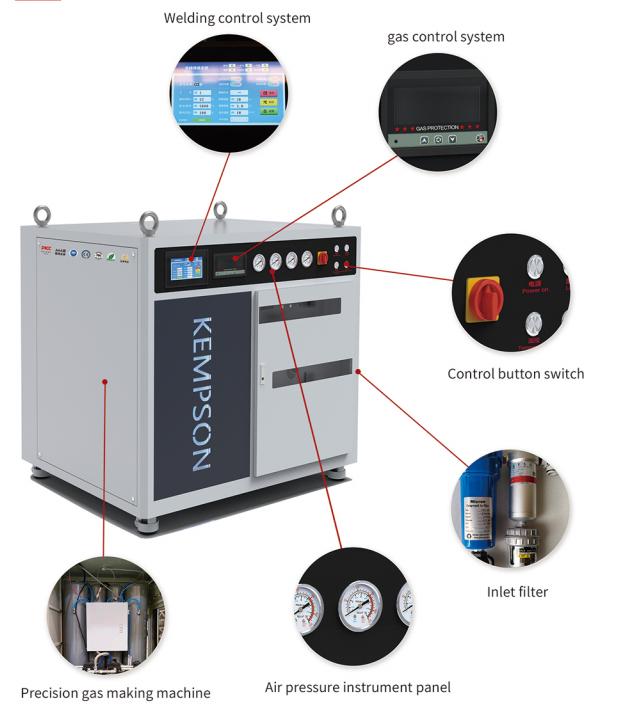

Kempson air laser welder does not require bottle gas. The machine can produce high-purity inert gas and can weld 0.5-10mm thick plates.The machine uses a Korean imported multi-stage vortex conflict separation filter,equipped with a high-precision gas generator.The 8mm wide weld bead is welded on one side and formed on both sides,without splashing or the need for secondary polishing.It can freely switch between single wire feeding,double loose wire feeding,and triple wire feeding,and the weld bead width and fullness are greatly improved,It can also achieve the effect of weld bead stacking height.A true welding tool,from thin plates to thick plates,one machine can handle it!French Schneider electronic control system,current filtering and isolator protection,dual temperature and dual control laser welding gun,no need to buy gas for laser welding,high efficiency and cost saving!
Product features:
Air welding/Imported components/Stable performance/Durable service life
Product Model：
|
MODEL |
KPS-ALW2000 |
KPS-ALW3000 |
|
laser power |
2000W |
3000W |
|
Melting depth (stainless steel,1m/min) |
5.03mm |
5.89mm |
|
Melting depth (carbon steel,1m/min) |
5.5mm |
6.5mm |
|
Melting depth(aluminum alloy,1m/min) |
4.61mm |
5.35mm |
|
Automatic threading |
φ0.8-2.0 |
φ0.8-2.0 |
|
Power consumption of the entire machine |
≤3kw |
≤3.5kw |
|
Cooling method |
Water cooling |
Water cooling |
|
Electricity demand |
380V |
380V |
|
Equipment size |
1.3*1.05*1.15m |
1.3*1.05*1.15m |
|
Equipment weight |
≈400kg |
≈420kg |
|
*The handheld welding head comes standard with a10 meter fiber optic cable, which is fexibleand convenient for outdoor long-distance welding |
||
Key words:
Handheld air laser welder 1000w-4000w
