Dual gun air laser welding 2000w/3000w/4000w
Classification:
Product Introduction
whatsapp：8613323803856
Product Details
Product introduction：

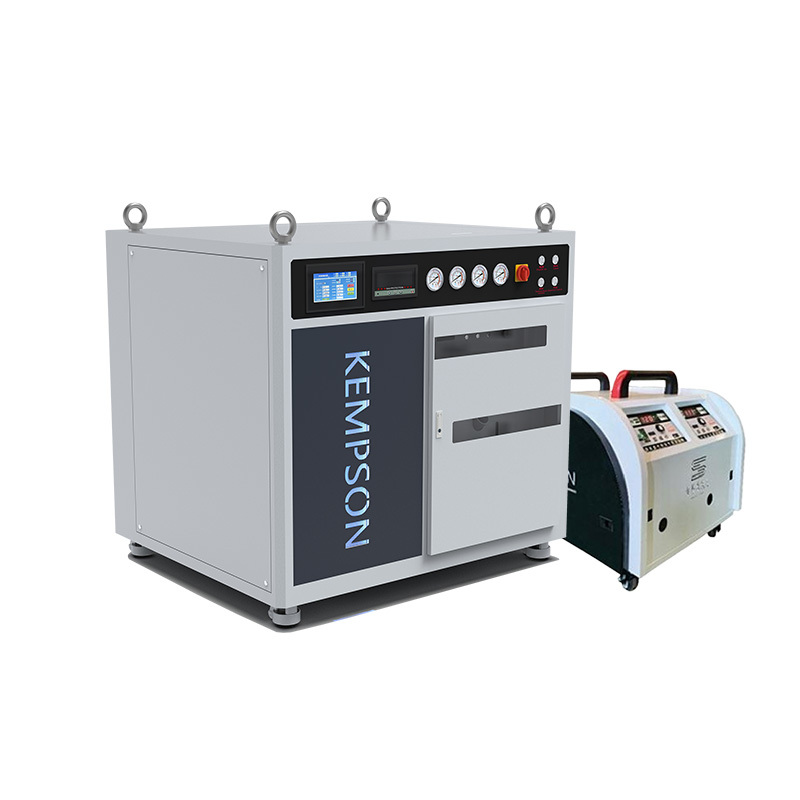

Kempson double gun 2000/3000/4000 air laser welding, can be controlled independently, for two people to use, no need to buy gas for laser welding, self-produced high-purity inert shielding gas, can weld 0.5-12 mm thick plates, with high-precision gas machine, 8 mm wide weld, anti-splash black gold welding gun, multiple use protective lenses, consumables cost is reduced to the lowest! Can freely switch between single wire feeding, double wire feeding and triple wire feeding, greatly improve the width and fullness of the weld, and can also achieve the effect of weld bead stacking. A real welding artifact, from thin plates to thick plates, one machine can do it! French Schneider electronic control system, current filtering and isolator protection, no need to buy gas for laser welding, high efficiency and more cost-saving!
Product Feathers

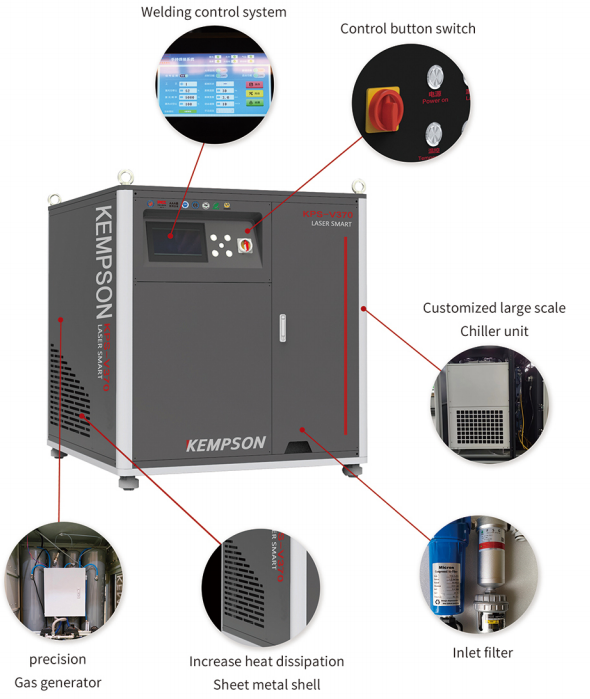

Self-produced gas/ Imported components/ Stable performance/ One machine with two guns
- The weld bead is higher and fuller
- The operation is light and efficient
- The weld is beautiful and solid without discoloration
- Green energy saving saves money
Product Model：
| MODEL | KPS-DALW2000 | KPS-DALW3000 | KPS-DALW4000 |
| laser power | 2000W*2 | 3000W*2 | 4000W*2 |
| Melting depth (stainless steel,1m/min) | 5mm | 9mm | 11mm |
| Melting depth (carbon steel,1m/min) | 5.5mm | 10mm | 12mm |
| Melting depth(aluminum alloy,1m/min) | 4.5mm | 8.5mm | 10.5mm |
| Automatic threading | φ0.8-2.0 | φ0.8-2.0 | φ0.8-2.0 |
| Power consumption of the entire machine | ≤4.5kw | ≤6kw | ≤8.5kw |
| Cooling method | Water cooling | Water cooling | Water cooling |
| Electricity demand | 380V | 380V | 380V |
| Equipment size | 1.2*1.3*1.3 | 1.2*1.3*1.3 | 1.2*1.3*1.3 |
| Equipment weight | ≈700kg | ≈720kg | ≈750kg |
| The handheld welding head comes standard with a10 meter fiber optic cable, which is flexible and convenient for outdoor long-distance welding |
|||
Application scenarios：
Screening equipment Agricultural machinery
Filter equipment Food Machinery
